Citroen C3: Ease of use and comfort / Courtesy lamp

Citroen C3. Courtesy lamp

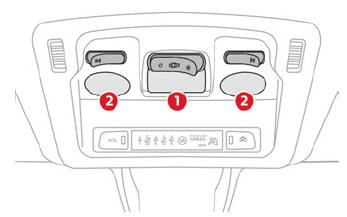

  1. Front courtesy lamp
  2. Front map reading lamps

Front courtesy lamp

Citroen C3. Courtesy lamp In this position, the courtesy lamp comes on gradually:

  • when the vehicle is unlocked.
  • when the key is removed from the ignition switch.
  • when a door is opened.
  • when the remote control locking button is activated, in order to locate the vehicle.

It switches off gradually:

  • when the vehicle is locked.
  • when the ignition is switched on.
  • 30 seconds after the last door is closed.

Citroen C3. Courtesy lamp Permanently off.

Citroen C3. Courtesy lamp Permanent lighting.

In "Permanent lighting" mode, the lighting time varies according to the circumstances:

  • With the ignition off, approximately 10 minutes.
  • In energy saving mode, approximately 30 seconds.
  • With the engine running, unlimited.

Map reading lamps

  • Citroen C3. Courtesy lamp With the ignition on, operate the corresponding switch.

Citroen C3. Courtesy lamp Take care not to place anything in contact with the courtesy lamps.
