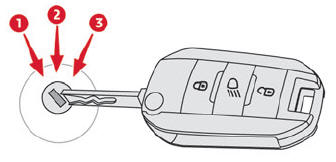

Citroen C3: Starting / Switching off the engine with the key / Key ignition switch

It has 3 positions:
- 1. Stop: inserting and removing the key,
steering column locked.
- 2. Ignition: steering column unlocked, ignition
on, Diesel preheating, engine running.
- 3. Starting.
Avoid attaching heavy
objects to the key
or the remote control. It would weigh
down on its shaft in the ignition switch and
could cause a malfunction.
Ignition on position
It allows the use of the vehicle's electric
equipment or portable devices to be charged.
Once the state of charge of the battery drops to
the reserve level, the system switches to energy
economy mode : the power supply is cut off automatically to preserve the
remaining battery
charge.
With the parking brake applied:
With a manual gearbox, place the gear lever
in neutral then fully depress the clutch pedal.
With an automatic gearbox, place the gear
selector in mode N or P then fully depress the
brake pedal...
Other information:
On the front bumper, unclip the cover by
pressing at its left-hand side.
Screw the towing eye in fully.
Install the towbar.
With a manual gearbox, move the gear lever
into neutral.
With an automatic gearbox, move the gear
selector into position N...
The engine represented is an example given for
illustration purposes only.
The locations of the following elements may
vary:
Air filter.
Engine oil dipstick.
Engine oil filler cap.
Petrol engine
Diesel engine
Screenwash fluid reservoir
Engine coolant reservoir
Brake fluid reservoir
Battery
Remote earth point (-)
Fusebox
Air filter
Engine oil filler cap
Engine oil dipstick
Primi..
